Should your solar & storage system be AC-coupled or DC-coupled?

One of the first—and most important—decisions when adding battery to a solar project, is how that battery will connect to the PV system.

This is known as the coupling architecture, and it influences everything from installation costs and energy efficiency to future expansion and return on investment (ROI).

The real question here is very simple:

Are you adding a battery to an existing solar system, or designing a new solar & storage project?

In most cases, the answer to that question will point you toward the right architecture.

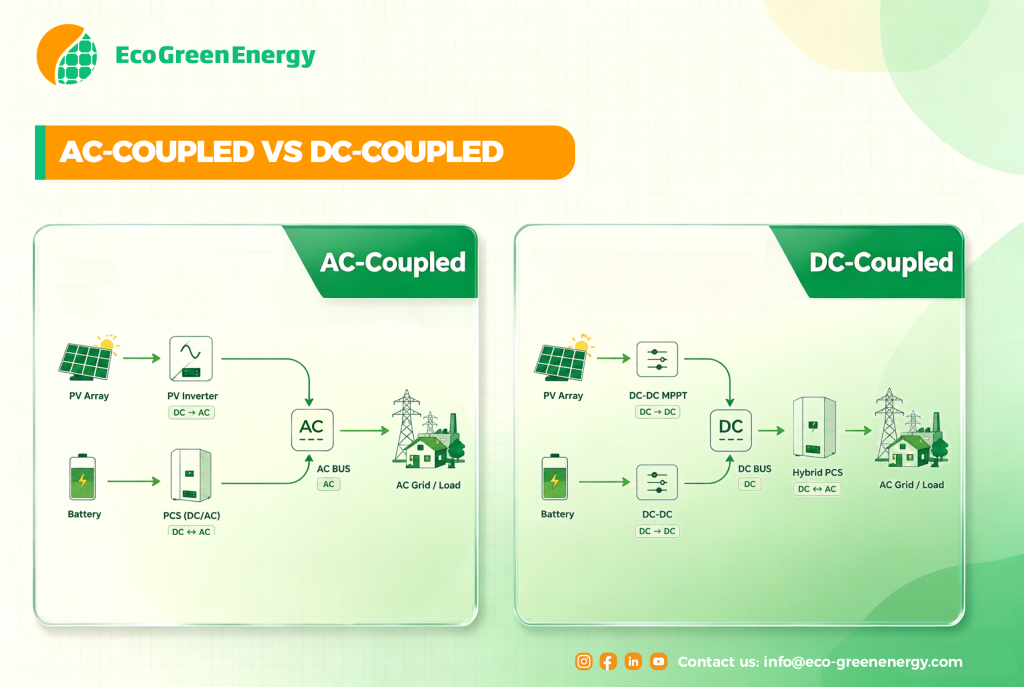

DC vs AC-coupled Battery: Understanding the Difference

The distinction is relatively simple actually:

In a DC-coupled system, the battery connects on the direct current (DC) side, alongside the solar array. Solar energy can flow directly from the panels into the battery before being converted into alternating current (AC) for the building or the grid.

In an AC-coupled system, the solar array and battery each have their own inverter. Solar power is first converted into AC, and if the battery needs to charge, it is converted back into DC before storage.

Although the battery cells may be identical in both systems, the energy follows a different path. That difference affects efficiency, equipment selection, and installation strategy.

If You Already Have Solar, AC-Coupled Usually Makes More Sense

Imagine a factory that installed a 1 MW rooftop PV system five years ago.

The business now wants to reduce demand charges and increase self-consumption with battery storage.

Should it replace perfectly functional solar inverters?

Usually, the answer is no.

An AC-coupled system allows the existing PV installation to remain in place while adding a dedicated battery inverter or Power Conversion System (PCS). That keeps installation work to a minimum and avoids replacing equipment that still has years of useful life.

This approach offers several advantages:

• Lower retrofit costs
• Faster installation
• Minimal disruption to operations
• Easy integration with existing equipment
• Greater flexibility to expand battery capacity later

There is a trade-off, however.

Because electricity passes through additional conversion stages, AC-coupled systems typically experience higher conversion losses than DC-coupled systems. Depending on the equipment and operating conditions, these losses can be around 10–15%, compared with roughly 3–6% in a DC-coupled design.

For retrofit projects, though, those additional losses are often outweighed by the savings from reusing existing infrastructure.

In other words, AC-coupling is often the most affordable compromise. It may not deliver the highest theoretical efficiency, but it usually provides the fastest and most cost-effective way to add storage to an existing solar system.

Planning a New Solar + Storage Project? Consider DC-Coupling

Now consider a developer planning a new commercial facility with solar and battery storage included from day one.

Since the system hasn’t been built yet, engineers can optimize every component together.

That is where DC-coupling has a clear advantage.

Because solar energy charges the battery before being converted into AC, the system avoids an additional conversion stage. This improves overall efficiency and allows more of the solar energy generated on-site to be stored and used later.

For new projects, DC-coupled systems can also reduce the amount of power conversion equipment required by using a shared hybrid inverter or PCS. That often leads to a cleaner system design and lower balance-of-system costs.

At utility scale, DC-coupling offers another important advantage: over-paneling.

Developers can install more PV capacity than the inverter’s AC rating and redirect surplus solar energy into the battery instead of losing it through inverter clipping. Over the lifetime of a project, capturing this otherwise wasted energy can significantly improve project economics.

While DC-coupled systems may require a higher upfront investment during the design phase, they often deliver the best long-term performance for new solar-plus-storage installations.

Which Architecture Offers Better ROI?

The best return on investment depends on the project itself.

If a business already owns a functioning solar system, replacing inverters simply to gain a few extra points of efficiency rarely makes financial sense. In that case, AC-coupling usually provides the strongest ROI because it minimizes upgrade costs.

On the other hand, if the project is being designed from scratch, investing in a DC-coupled architecture can improve efficiency, simplify installation, and optimize energy production over the system’s lifetime.

The lowest upfront cost doesn’t always produce the highest long-term value—and the highest efficiency doesn’t always justify replacing existing equipment.

Many discussions focus on conversion efficiency alone. While that matters, it should not be the deciding factor.

A difference of one or two percentage points in energy conversion rarely outweighs the costs of redesigning an existing installation or replacing functioning equipment.

Instead, project owners should consider the complete picture:

• Installation costs
• Existing infrastructure
• Operational goals
• Future expansion plans
• Maintenance strategy
• Expected battery cycling

In many cases, the architecture that simplifies installation also delivers the strongest long-term value.

Comparing AC and DC-Coupled Systems

The table highlights an important point: choosing the right architecture depends on the project, not on a single technical specification.

Which Applications Fit Best?

AC-Coupled Systems

AC-coupling is often the preferred choice for:

• Commercial and industrial retrofit projects
• Existing rooftop PV systems
• Schools and universities
• Hospitals
• Manufacturing facilities
• Businesses planning to expand battery capacity over time

Since the battery operates independently from the solar inverter, upgrades are generally easier as energy needs grow.

DC-Coupled Systems

DC-coupling is commonly selected for:

• New commercial developments
• Utility-scale solar farms
• Greenfield projects
• Sites designed with battery storage from the beginning
• Projects focused on maximizing solar self-consumption

When both the PV system and battery are designed together, DC-coupling can create a streamlined and efficient solution.

Looking Beyond Today’s Project

Many businesses begin with a modest system and expand as electricity demand increases or utility tariffs change.

That is why flexibility deserves as much attention as efficiency.

For example, a manufacturer installing 500 kWh of storage today may decide to double capacity in three years after adding a second production line. An architecture that supports straightforward expansion can reduce future engineering work and installation costs.

Thinking beyond the first phase often leads to better long-term decisions.

You can explore EGE GAIA BESS Series here. Eco Green Energy offers a wide range of Energy Battery Storage Systems as well as engineering, commissioning, sizing and support services for successful solar & storage projects.

The Best Choice Is the One That Matches Your Goals

Ultimately, the battery is only one part of the system. The architecture surrounding it determines how efficiently the entire project operates today, and how easily it can adapt to tomorrow’s energy needs.

Choosing the right coupling has everything to do with selecting the design that delivers the best performance, flexibility, and value for the specific application.
